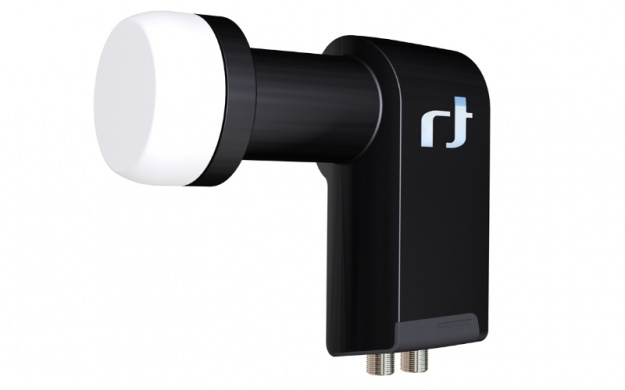

Inverto Black Ultra Twin (L901)
• Superior Phase Noise performance DVB-S2 (HDTV) compliant• Excellent isolation – extremely high cross-pol performance
• Very low spurious levels
• Superior Noise Figure
• Higher conversion gain
• Ultimate reliability
| Specifications |
|
| Low Band Input Frequency Range | 10.7~11.7 GHz |
| Low Band Output Frequency Range | 950~1950 MH |
| LO Frequency | 9.75 GHz |
| High Band Input Frequency Range | 11.7~12.75 GHz |
| High Band Output Frequency Range | 1100~2150 MHz |
| LO Frequency | 10.6 GHz |
| Noise Figure | 0.2dB typ. (0.7dB max.) |
| LO Initial Accuracy | +/- 1.0 MHz max. |
| LO Temperature Drift | +/- 3.0 MHz max. |
| LO Phase Noise @ 10K Hz | -90 dBc/Hz max. |
| Conversion Gain | 60 dB min. |
| Gain Ripple | +/- 0.75 dB/27MHz |
| Gain Variation | +/- 4 dB |
| Image Rejection | 40 dB min. |
| 1 dB Compression Point (O/P) | 0.0 dBm min. |
| Cross talk | 23 dB min. |
| Control Signals Ca [ V ] | 11.0~14.0 V |
| Control Signals Cb [ H ] | 16.0~20.0 V |
| Control Signals Cc [Band switching] | 22 KHz +/- 4 KHz 0.4 V – 0.8 V pp |
| Output VSWR | 2.0 : 1 |
| Radiated Interference | -60 dBm max. |
| DC Power | 180 mA max. @ 11 – 20V |
| Working Temperature | -30~+60 °C |
| Output Impedance (connect to STB) | 75 Ω |
| Output connector | F-type (female) |
| Weight | 181 g |
-
Inverto Black Ultra Twin
